Blueshape 95HD Mini V Lock and Stud mount Battery

Blueshape 95HD Mini V Lock and Stud mount Battery

Compact and Powerful 95Wh Li-Ion battery pack, High-Drain,
Wi-Fi enabled, with a rock solid construction incorporating 2x D-Tap connectors enabled for charging.

BLUESHAPE is upgrading the GRANITE line-up, proudly introducing GRANITE MINI - the new series of small, compact and powerful battery packs,
ideal for smaller cinema cameras, featuring the innovative and handy Wi-Fi connectivity.

This streamlined battery pack features high draw and world class Li-Ion chemistry that provides superior and long lasting electrochemical performances in a reduced core, making this battery perfect for high demanding video applications.

Featuring a 5 LED precise gauge for accurate capacity display integrated with state-of-the-art battery safety, balancing and monitoring technology and also providing digital communication with enabled devices. Furthermore, this battery provides 2 additional power outlets through D-Tap sockets conveniently located on the battery sides, protected by rubber covers. Both outlets are directly connected to the battery terminals for maximum power on the D-Tap ports, and can also be used for immediate and intuitive charging using inexpensive AC-DC D-Tap style chargers. They can be conveniently used to power devices working at 14.4V nominal, or even USB powered gadgets and chargers through the PT-USB adapter.

No IATA restrictions, transportable in reasonable quantities in hand luggage only, or in the checked-in luggage if installed in the equipment.

Advanced modular design
The lithium ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic BMS board are integrated with the cells making a single core. No wiring is used. The metal, cell-to-cell tabs have been thickened using lower resistance alloy for improved welding strength and superior electrical conductivity.
D-Tap sockets are modularly deployed on each pack side and externally protected with snap on rubber caps.

Rock Solid Construction

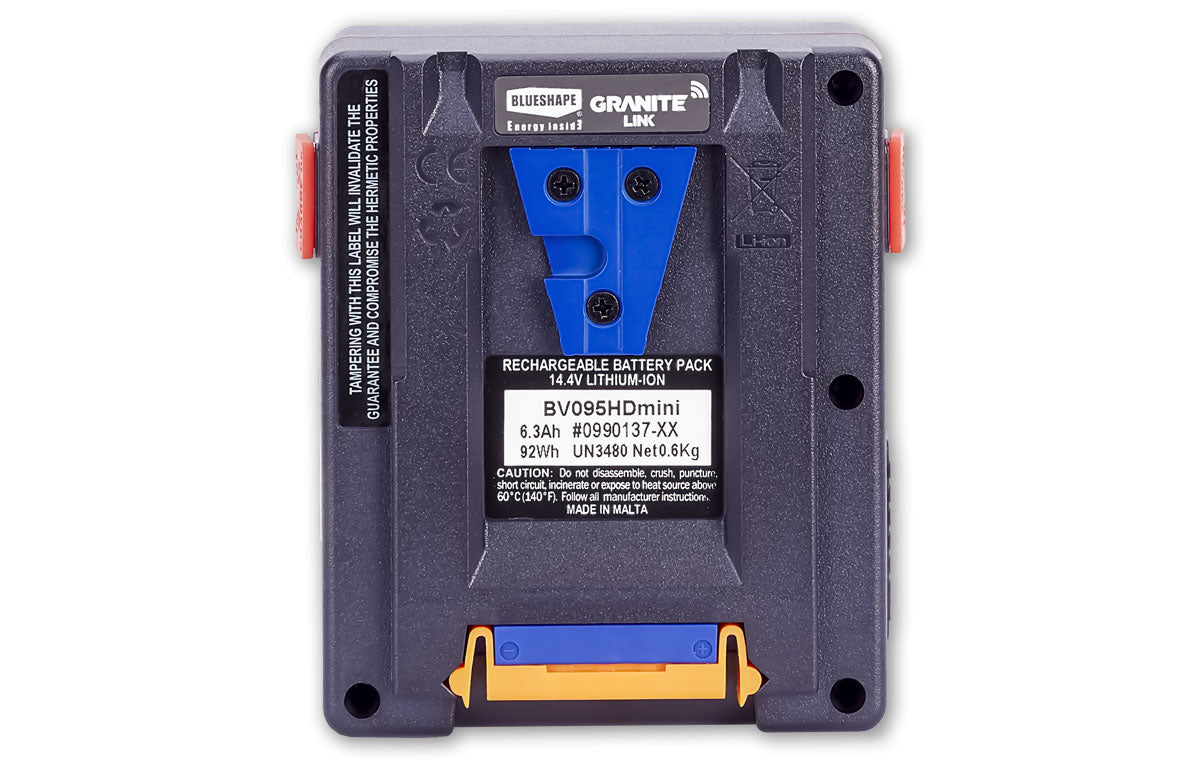

The external V-Bracket is screwed to the inner core through the bottom case, by means of a reinforcement metal plate.
The outer battery pack shells wrap the inner core and clamp it with 8 perimeter screws.
A coloured rubber gasket is sandwiched in the middle between the outer shells to improve water resistivity apart from giving the battery, a smarter look.

Superior resin
The outer shells are made of 4mm thick automative grade plastic resin featuring superb toughness and impact resistance even at low temperatures.

IP54 Certified
The superior GRANITE construction features an outer shell and insulations rated IP54 that guarantee protection and safety of operations against dust and water.

Improved overall pack longevity
The battery system as a whole will benefit from this robustness because of the reduced risk of internal disconnection or malfunction caused by unexpected crashes thus extending the overall pack life expectancy.

As a result all these significant technical improvements BLUESHAPE GRANITE battery packs are virtually indestructible. We have subjected them to intensive testing and we can safely say that such batteries can withstand several drops from heights up to 2 metres without suffering internal and external critical damages that render them unusable.
