Blueshape BV190HD Granite 2 Splash Battery

Blueshape BV190HD Granite 2 Splash Battery

Big sized Hi-Rate discharge GRANITE SPLASH battery pack, IP65 rated,
Wi-Fi enabled, with a rock solid construction.

Incorporating the same features of the corresponding GRANITE model, the BV190HD SPLASH features a special design for achieving an IP65 rating, meaning that the battery resists water ingress from splashes and water jets such as from exposure to rain.
While the battery is one of the most powerful V-Mount batteries available on the market today, capable of operating continuously in discharge at up to 12A (approx. 175W), the SPLASH construction makes it ideal to power battery operated light panels and to endure tougher outdoor shooting conditions on any location.

Advanced modular design
The lithium ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic BMS board are integrated with the cells making a single core. No wiring is used. The metal, cell-to-cell tabs have been thickened using lower resistance alloy for improved welding strength and superior electrical conductivity.

Rock Solid Construction

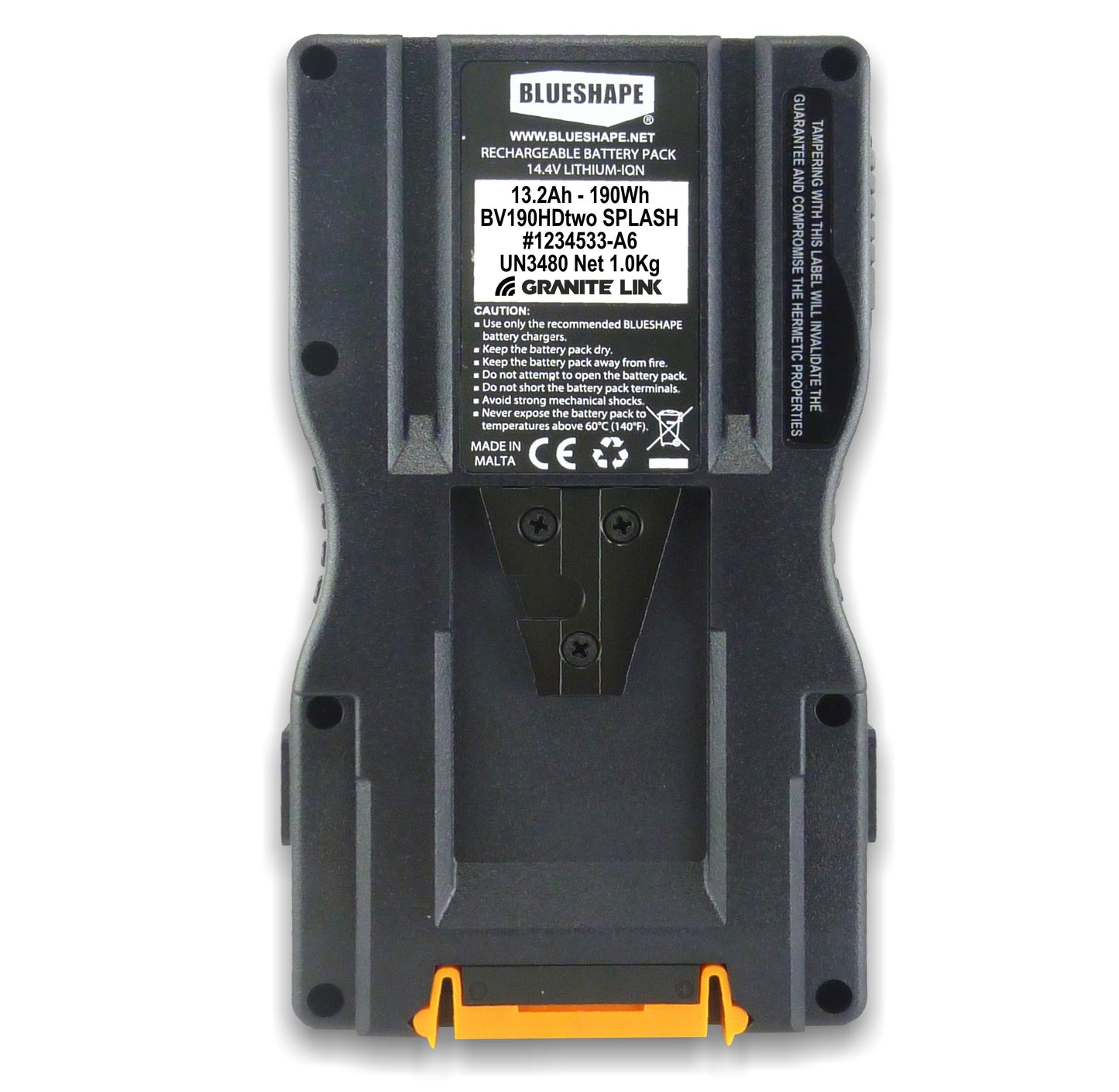

The external V-Bracket is screwed to the inner core through the bottom case, by means of a reinforcement metal plate.
The outer battery pack shells wrap the inner core and clamp it with 8 perimeter screws.
A coloured rubber gasket is sandwiched in the middle between the outer shells to improve water resistivity apart from giving the battery, a smarter look.

Superior resin
The outer shells are made of 4mm thick automative grade plastic resin featuring superb toughness and impact resistance even at low temperatures.

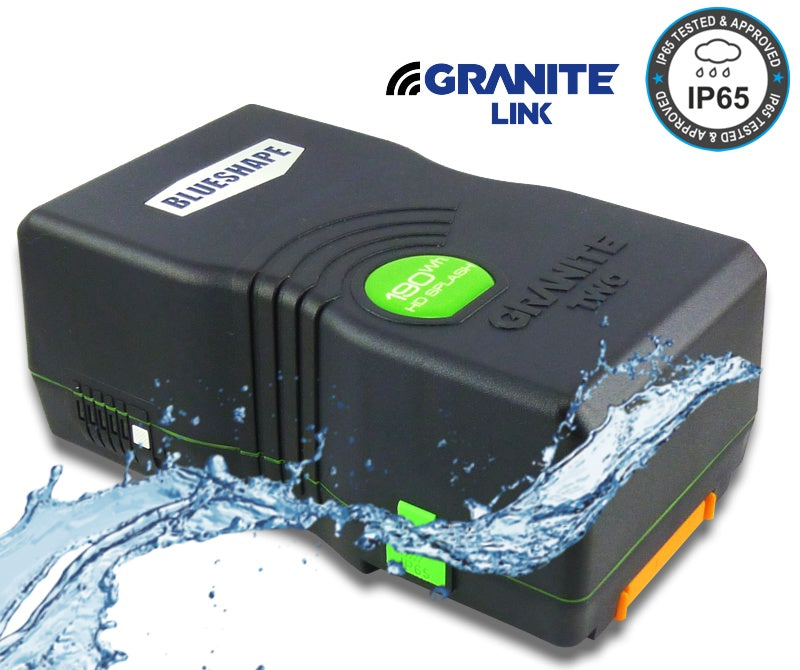

SPLASH: IP65 Certified
The superior GRANITE construction and the improved insulations features an IP65 rating that guarantee protection and safety of operations against prolonged water splashes and jets exposure making the SPLASH series ideal for outdoor usage under rain.

Improved overall pack longevity
The battery system as a whole will benefit from this robustness because of the reduced risk of internal disconnection or malfunction caused by unexpected crashes thus extending the overall pack life expectancy.

As a result all these significant technical improvements BLUESHAPE GRANITE battery packs are virtually indestructible. We have subjected them to intensive testing and we can safely say that such batteries can withstand several drops from heights up to 2 metres without suffering internal and external critical damages that render them unusable.

GRANITE LINK, Wi-Fi enabled remote control
GRANITE construction, robust, shockproof
SPLASH series: IP65 rated, designed for outdoor use under continuous rain
Enhanced contact protection for safer air transport
Nominal Voltage: 14.8V
Voltage range: 10.8V ~ 16.8V
Nominal Capacity: 13.2Ah, 190Wh
Max. discharge current: 12A
Size: 171 x 95 x 69mm (6.73" x 3.74" x 2.71")
Weight: 1.62Kg (3.57lbs)
