Blueshape

Blueshape CVS8XW Charger

Blueshape CVS8XW Charger

Regular price £2,267.00 GBP
Regular price Sale price £2,267.00 GBP
Sale Sold out
Fitting

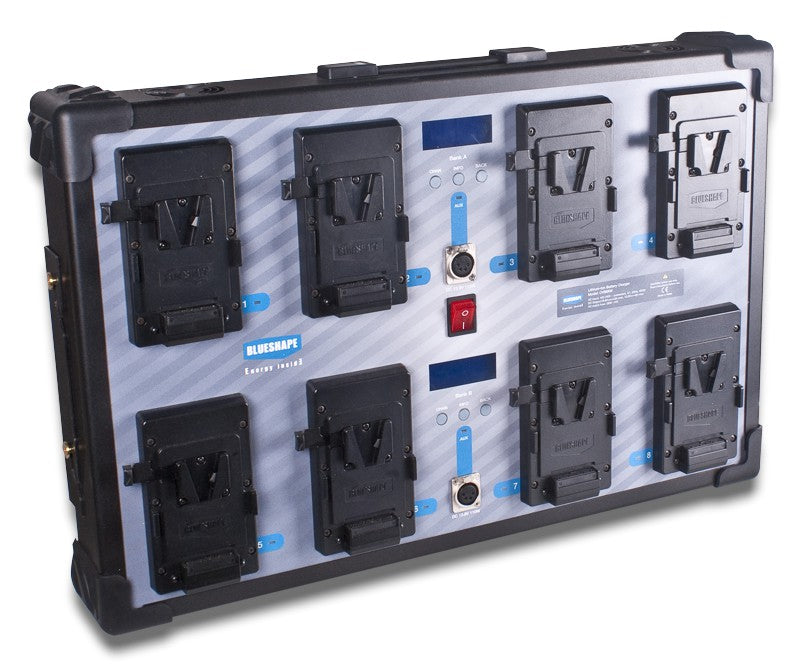

Blueshape CVS8XW Charger

Charge up to eight batteries simultaneously.
Features:
USB socket for computer-based monitoring.
AC 100-240V 47-63Hz input.
8x DC 16.8V 4.8A and 2x AUX DC 13.8V 110W (max.) outputs.
Charging current of 4.8A per channel when up to four batteries are charging, and 3.0A per channel when five or more batteries are charging.

Designed for both V-Lock or Stud mount Li-Ion batteries, can charge up to 8 batteries fully simultaneously.

Two LCD display shows battery digital information in real time like state of charge, charge time to full and status information, one LCD for each group of four batteries.

Rugged and simple wall mounting system by means of a special metal bracket for easy indoor installation and use. It can easily be mounted in a production vehicle and just as easily removed in case of need.

Compact, robust and slim design to minimize space occupancy.

Redundant electronic design with four power supplies for increased reliability, it features IPCS and CTP for improved battery and charger protection.

Provided with 2x Auxiliary DC output power source at 13.8V 110W through an XLR 4 pin socket.

USB connection to interface the CVS8XW with computer: up to 4 chargers can be monitored by a single PC through BSCVMON (provided in the box).

Dimensions: 110 mm × 410 mm × 620 mm
Weight: 9.7 kg
