Blueshape

Blueshape MVQUICK Hot-Swap Adaptor

Blueshape MVQUICK Hot-Swap Adaptor

Regular price £318.00 GBP
Regular price Sale price £318.00 GBP
Sale Sold out

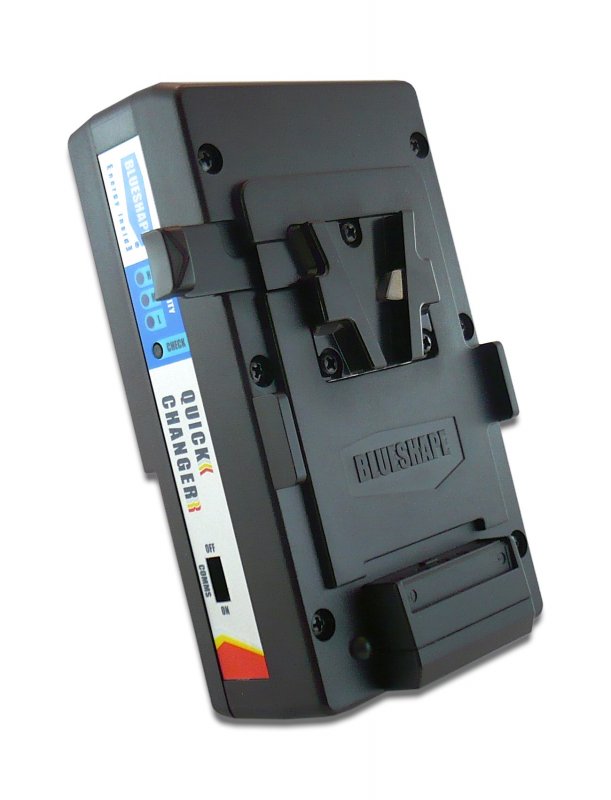

Blueshape MVQUICK Hot-Swap Adaptor

The all-purpose Hot-Swap adaptor

Features:

Nominal Voltage: 14.8V
Voltage range: 10.8V ~ 16.8V
Nominal Capacity: 1.5Ah, 21Wh
Max. discharge current: 10A
About up to 10~15 minutes runtime when used standalone as a UPS backup battery.
Installable on any V-Lock enabled device
Self charging through the installed battery, and can be charged also on any V-Lock chargers.
Allow data communication from battery to camera

MVQUICK is a hot swap system to be installed as a battery interface between the camera (or any other V-lock compatible device) and the battery pack. The main purpose is to allow camera battery replacement without any power interruption through an automatic detection of the battery removal. Additionally, MVQUICK provides an alternative power source of about 21Wh to be used as UPS in case of a sudden power failure or extended power requirements.

High-load cell technology permits discharging of up to 10A when used as a stand alone power source.

MVQUICK automatically recovers a part of the energy spent during the hot swap period upon reinstatement of a fresh battery, and due to this features allows several hot swap operationswithoutn needing any further charge. If it is to be used as a UPS device, it can be charged normally on standard V-Lock chargers.

This product is designed to work perfectly with cameras using BLUESHAPE battery communication protocol.
