Blueshape PWS RUGGED Power Station
Blueshape PWS RUGGED Power Station
Regular price
£2,453.00 GBP
Regular price
Sale price
£2,453.00 GBP
Unit price
/
per
Couldn't load pickup availability
Blueshape PWS RUGGED Power Station
Like having a generator in a case
Features:
Supplies 14v, 28v, and 48v
PWS-RUGGED is the evolution of the Power Station family, designed for field productions.

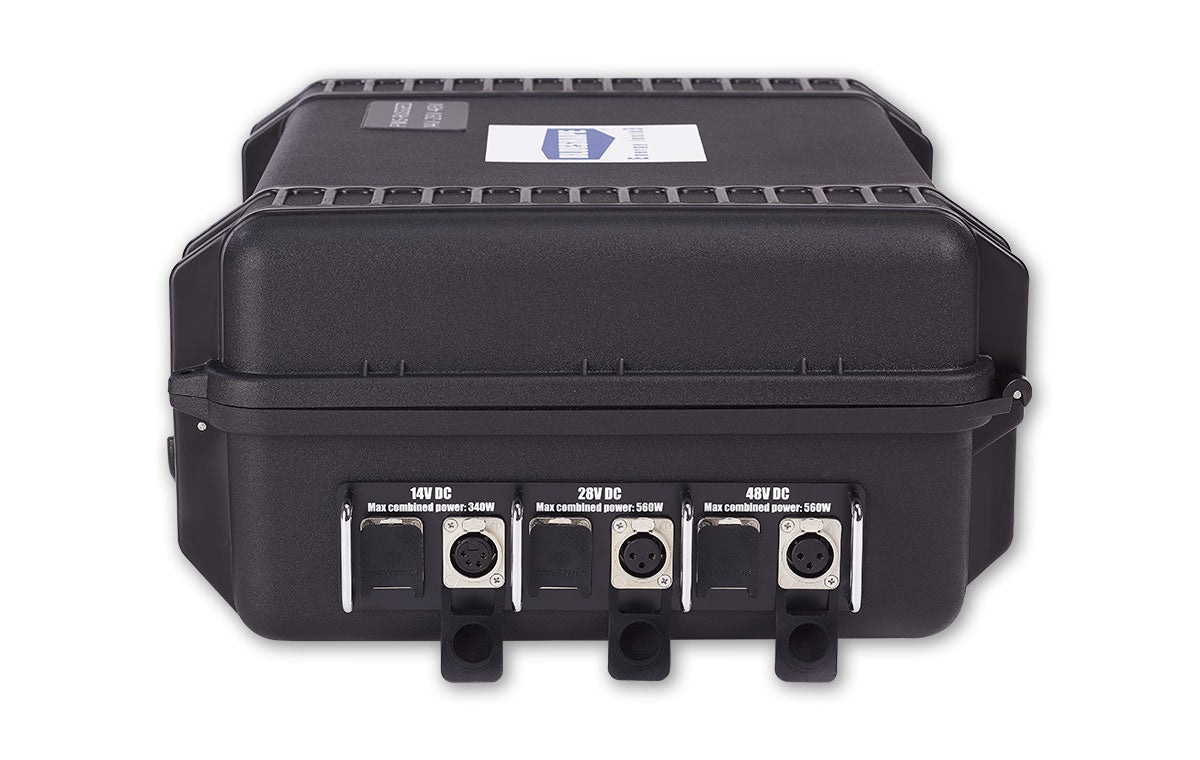

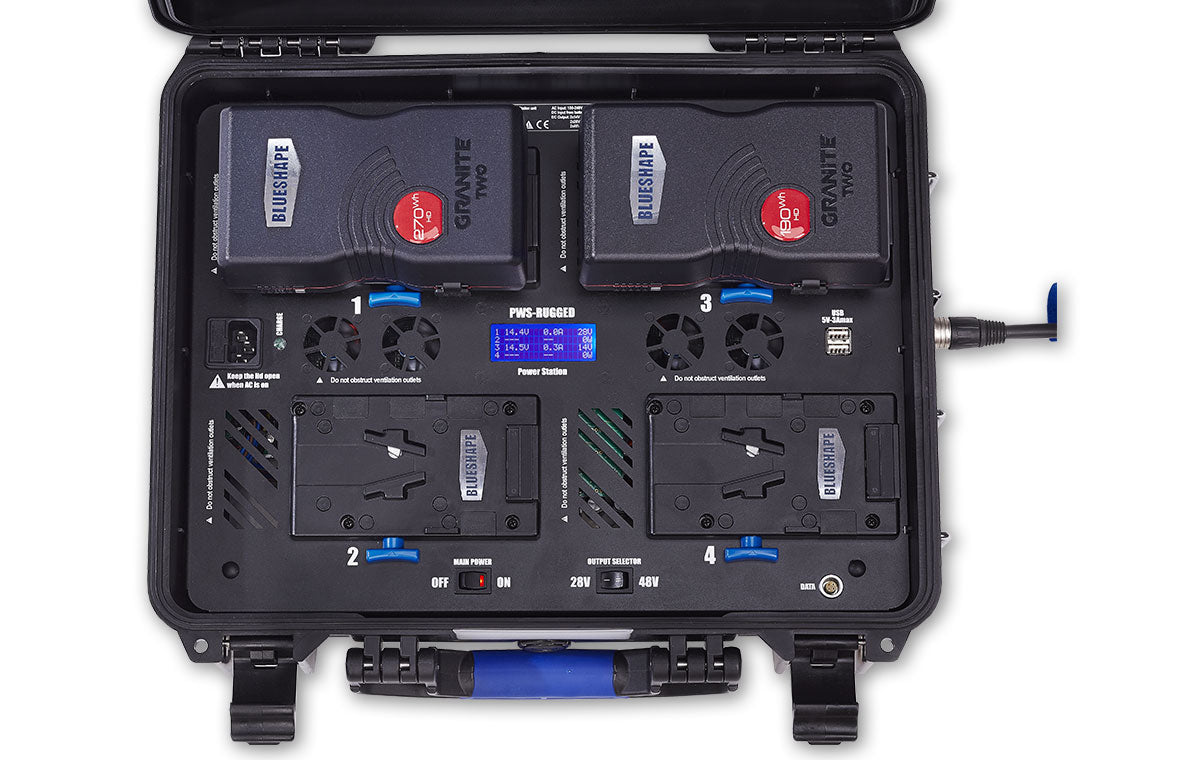

This useful device combines the power of up to 4 V- Lock batteries and provides 3 different ouputs over 6 XLR connectors:
2x14V,XLR-4pin
2x28V,XLR-3pin
2x48V,XLR-3pin
While the 14V output is always available, the 28V-48V are alternative and user selectable through a switch. An additional double USB outlet is provided inside the case for convenience to recharge small production equipment.

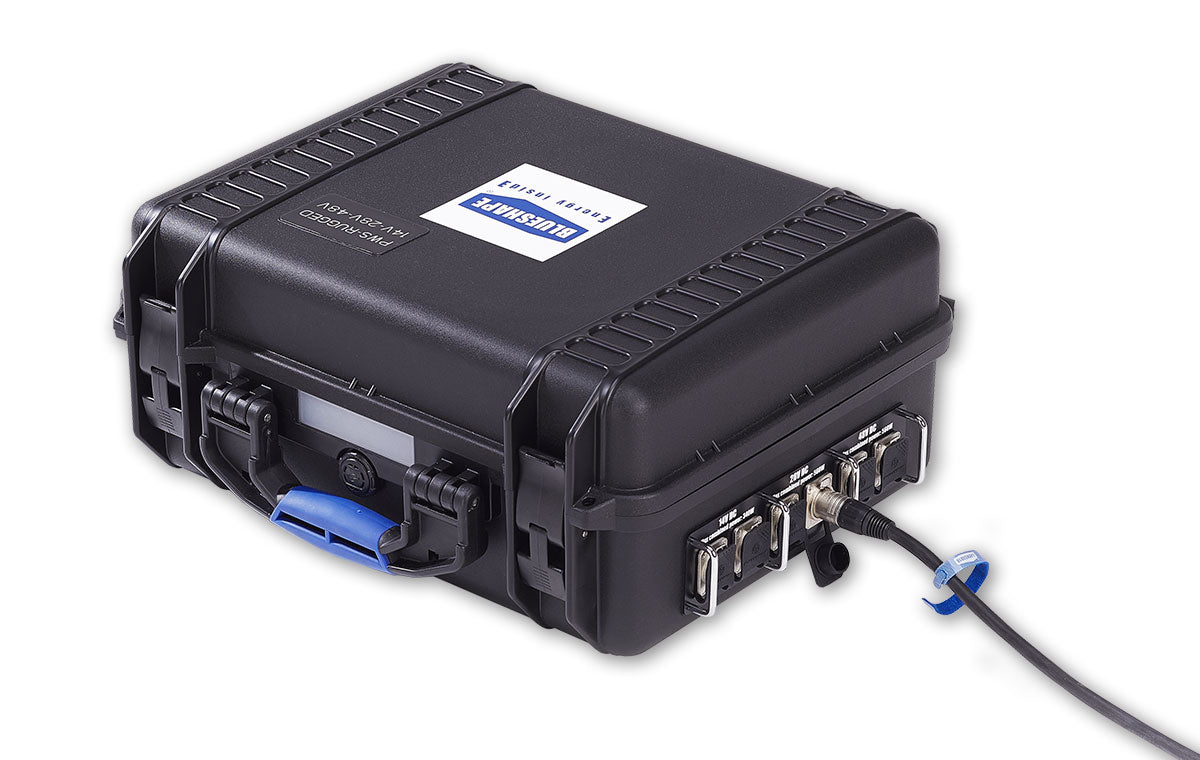

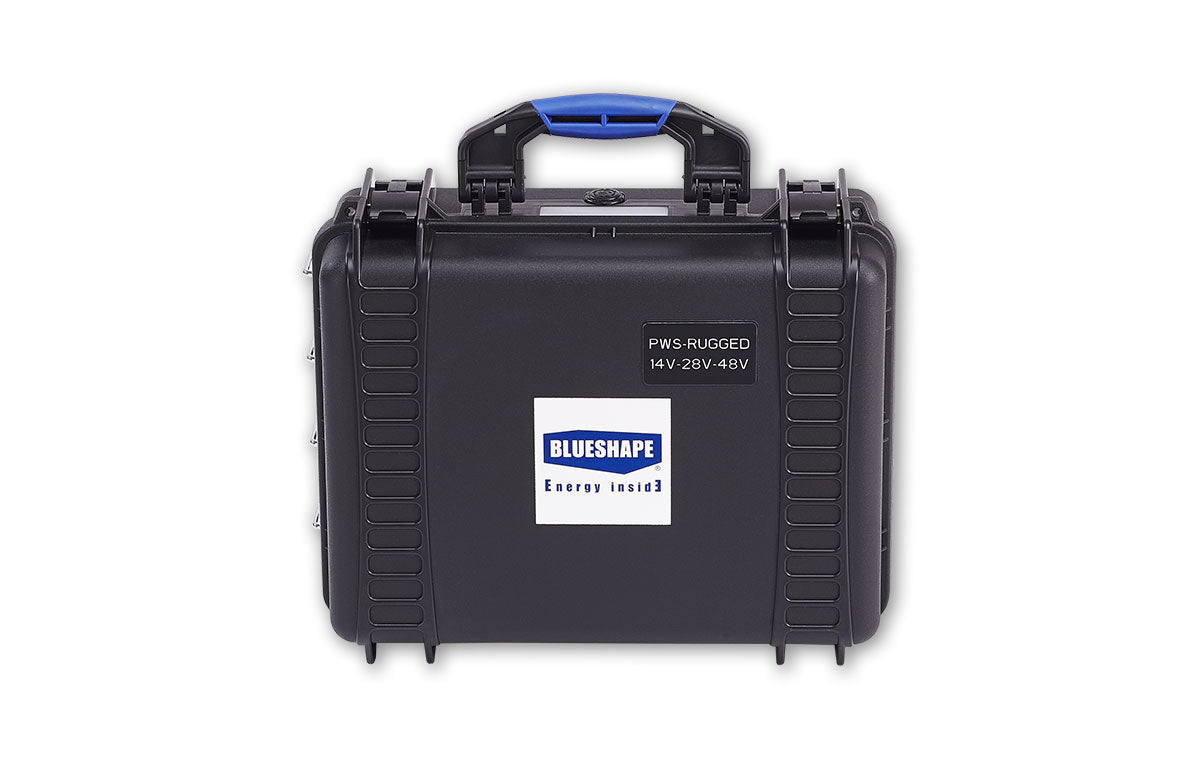

PWS-RUGGED is constructed inside a lightweight, waterproof, unbreakable case, with a double-hinged locking system and a soft grip handle for field comfort.
This useful device combines the power of up to 4 V- Lock batteries and provides 3 different ouputs over 6 XLR connectors:
2x14V,XLR-4pin
2x28V,XLR-3pin
2x48V,XLR-3pin
While the 14V output is always available, the 28V-48V are alternative and user selectable through a switch. An additional double USB outlet is provided inside the case for convenience to recharge small production equipment.
PWS-RUGGED is constructed inside a lightweight, waterproof, unbreakable case, with a double-hinged locking system and a soft grip handle for field comfort.
Technical Data:
Input:
1 to 4 installable batteries, hot swappable
Output (Outside)
2x regulated 48V, max 560W (user selectable)
2x regulated 28V, max 560W (user selectable)
2x regulated 14V, max 340W (simultaneous)
individually protected by hinged covers
Output (Inside)
2x USB 5V 3A - 15W max/each.
Display
20x4 backlighted LCD
Size
434 x371 x193 mm
(17.09" x 14.61" x 7.60")
Weight
5.5Kg (without batteries)
(12.13lbs)
